Product Details:
|
| Speed: | 50~1000mm/min | Accuracy: | 0.5% |
|---|---|---|---|
| Power: | 220V | Weight: | 95kg |
| Subject: | Yarn | Method: | Tensile Strength |
| Highlight: | Textile Testing Equipment,Fabric industry Textile Testing Equipment |
||

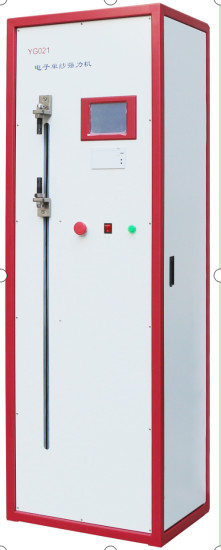

LY-YG021 Electronic single yarn strength machine
Uses: It is used to test the breaking strength and elongation of single yarn and fiber pure or blended yarn of various cotton, wool, silk, chemical fiber and core-spun yarn.
Standards: GB/T 14344, GB/T 3916, ISO 2062, ASTM D 2256, etc.
Characteristics:
1. Touch screen control, Chinese and English menu, man-machine dialogue mode, easy to operate.
2. The built-in thermal printer is convenient for quickly printing the test results on site.
3. The professional computer analysis software can realize two-way operation with the computer, and can perform report statistics, visual analysis of graphs, etc.; the software is open software, which can edit the required test program according to its own needs; and supports remote upgrade and maintenance of the instrument .
4. The transmission system is driven by stepping motor and synchronous pulley; the instrument has low noise and high elongation accuracy.
5. A variety of protection measures are adopted: upper and lower limit protection devices; sensor overload protection; overcurrent, overvoltage and other protection; displacement and load limit software protection can be set; and real-time monitoring and display of fault information for main components; Therefore, the use of the instrument is safer and more reliable.
6. It provides a variety of humanized automatic modes, digital setting of the clamping distance of the instrument, and automatic positioning.
7. Instrument control mode: host touch screen control and desktop computer control are optional.
Specifications:
1. Working mode: constant velocity elongation (CRE) principle, microcomputer control, LCD Chinese display, support online communication
2. Measuring force range: 1% to 100% of full scale.
| Model | Type 5 | Type 50 |
| Full range | 50N | 500N |
3. Test accuracy: ≤0.2%F·S
4. Tensile speed: 1～1000mm/min
5. Elongation range: 800mm (excluding fixtures)
6. Clamping distance: 50~500mm, digital setting
7. Pre-tension: 0～150cN tension scale
8. Dimensions: 520×400×1600mm
9. Weight: 73kg
10. Power supply: AC220V 50Hz 250W
