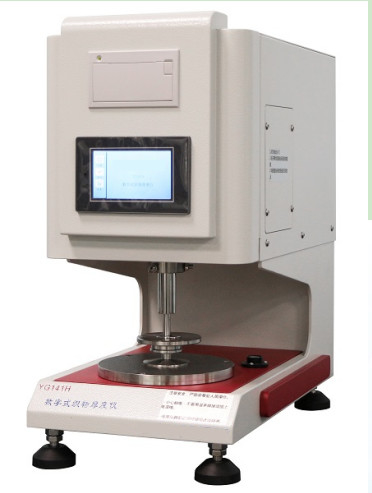

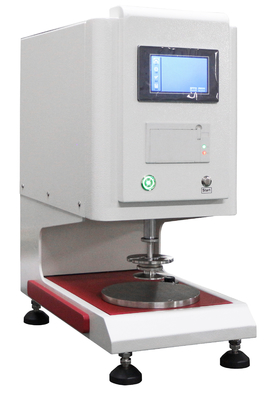

LY-YG141H Fabric Thickness Meter
Introduction: It is used to measure the thickness of various textiles, textile products, non-woven fabrics and other materials under different pressures, and can also be used to measure the thickness of other uniform thin materials.
Standard: GB/T3820；GB/T 24218.2；ISO5084；ISO9073；
Specifications:
| Range | 25mm, 50mm optional |
| Accuracy | 0.01mm |
| Presser foot area | 100, 2000, 2500, 10000mm2 |
| Ballast weight | 5cN (1 piece), 10cN (2 pieces), 50cN (2 pieces), 100cN (1 piece), 200cN (2 pieces), 500cN (2 pieces) |
| Weighting time | 1～999s can be set |
| Test Data | Can store 30 groups, each with 50 test results |
| Power | AC220V, 50Hz, 100W |
| Dimension | 250×450×460mm, 35KG |
Instrument characteristics:
1. Touch screen control, Chinese and English menu, man-machine dialogue mode, easy to operate.
2. The built-in thermal printer is convenient for quickly printing the test results on site.
3. The cam-link transmission mechanism completes the rising and falling movement of the instrument.
4. Adopt the power supply mode of the instrument itself, no need to replace the battery.
5. Test mode: single and continuous.
6. The self-balancing presser foot is used to ensure the accuracy and repeatability of the test.
7. The test pressure is automatically converted and displayed without manual calculation.
