Product Details:
|
| Highlight: | Textile Testing Equipment Fineness Tester,Cotton Micronaire Fineness Tester,Textile Micronaire Fineness Tester |
||
|---|---|---|---|

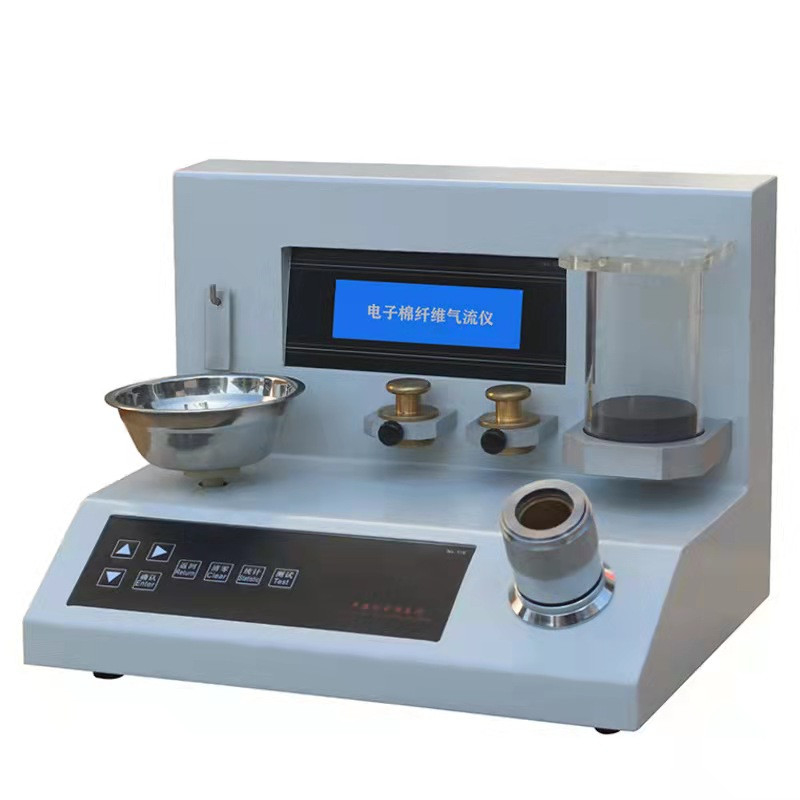

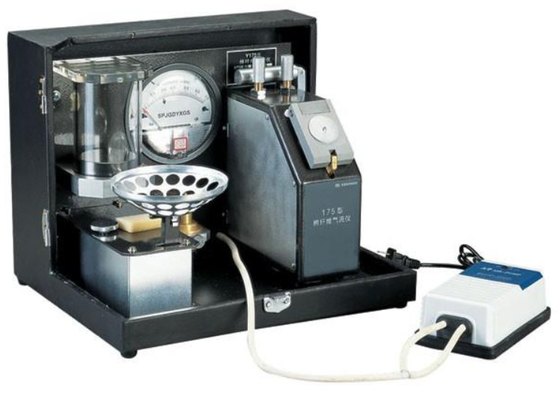

LY-Y175A Cotton Fineness Micronaire Tester
Uses:
This instrument is suitable for measuring the micronaire value of loose and disordered cotton fibers.
Applicable standards:
GB/T6498-2007 ,GB/T6097-2006,ISO2403---1972
Characteristics:
1. A measure of the air permeability of a certain amount of cotton fibers under specified conditions, expressed in micronaire values.
2. Micro-air pressure sensor and micro-computer automatic control and data processing can display the micronaire value and micronaire grade.
3. The machine has the function of automatic calibration of standard cotton samples, which improves the detection speed and accuracy.
4. The instrument can also convert micronaire value to metric count.
5. Use electronic weighing, the sample mass is based on 8g, and the microcomputer automatically corrects the micronaire value within the range of 7.5 ~ 8.5g
6. The instrument uses a large-screen LCD to display information; electronic weighing is convenient and fast; it can be connected to a printer to print test data and statistical data. Semi-automatic control, the operation is very convenient.
Specification:
| Weighing accuracy | ±0.01g |
| Bulk density | 0.26g/cm2 |
| Measuring range | 2.5~6.5 micronaire units |
| Accuracy | ±0.1 micronaire unit |
| Use environment | 5℃~40℃, relative humidity below 90% |
| Power supply | AC220V±10%, 50Hz |
| Size | 400mm×305mm×275mm |
| Weight | about 22kg |
