Product Details:
|
| Warranty: | 12 Months, 12 Months | Standard: | GB/T 1038,ISO 2556,ISO15105-1,,ASTM D1434,YBB00082003 |
|---|---|---|---|
| Sample Thickness: | ≤2mm | Testing Temperature Rate: | 15°C~35°C |
| Measuring Range: | 0.02~5000 Cm3/m2 .day.0.1Mpa | Power Supply: | AC220 V/50Hz |
| Temperature Precision: | N: ±0.1°C | ||
| Highlight: | Plastics Gas Permeability Analyzer,LIYI Permeation Tester,Plastics Permeation Tester |
||

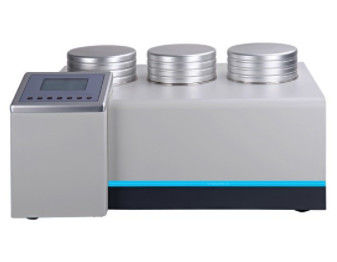

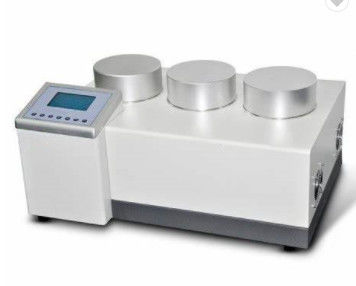

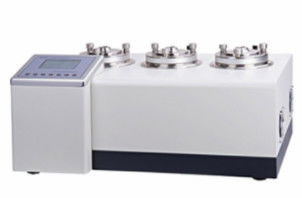

LIYI Permeation Tester Plastics Gas Permeability Analyzer
This machine is tested the gas transmission rate (GTR) of packaging material.
Design standard: GB/T 1038,ISO 2556,ISO15105-1,,ASTM D1434,YBB00082003,JIS K7126-A
Characteristics:
1.Automatic test, user friendly, non-maintenance design;
2.Two test mode of high and low, width measurement range, high precision ;
3.Superior components, accurate test result, high stability;
4.Automatically increase and decrease temperature, no special requirements to the environment.
| Measuring range |
0.02~5000 cm3/m2 .day.0.1Mpa 0.2~50000 cm3/m2 .day.0.1Mpa(by use expansion the mode) |
| Measuring accuracy | 0.01cm3/m2.day.0.1Mpa |
| Testing temperature range | 15°C~35°C, |
| Temperature precision | ±0.1°C |
| Resolution ratio | 0.1pa |
| Vacuum | <20pa |
| Carried gas inlet | 1/8 inch |
| Sample thickness | ≤2mm |
| Dimension | 700(L)mm×520(W)mm×380(H)mm |
| Power supply | AC220 V/50Hz |
| Sample area | Φ80mm, transmission area 50.24cm2,(no stipulate for area in international) |
| Gas Pressure |
0.2-0.8Mpa |
Work principle:
1.Use different pressure method .Put the prepared sample between the upper and lower chamber ,clamping it.
2.Then do the vacuum for the whole system.
3.Close the lower testing chamber, input test gas in the upper chamber, make sure form constant pressure between the two side of test sample, for differential conditions, the gas will permeate from the high pressure to lower pressure side, by monitoring the pressure of the lower pressure side to get parameters of various kinds testing samples.
