Product Details:
|
| Maximum Temperatue Indication Error: | 0.1℃ | Maximum Deformation Indication Error: | ±0.001mm |
|---|---|---|---|
| Sample Holder Number: | 3/4/6 Sets | Power Supply: | 220V 50Hz |
| Temperature Range: | RT-300℃ | Temperature Indication Precision: | ±0.5℃ |
| Deformation Measurement Range: | 0-10mm | Weight Of Load Bar And Tray: | 68g |
| Highlight: | Automatic Apparatus Rubber Testing Machine,Liyi Rubber Testing Machine,HDT Vicat Test Machine |
||

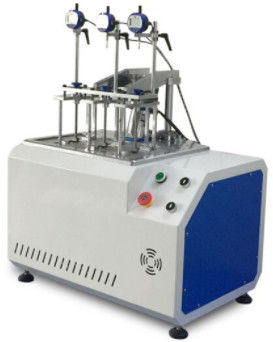

Liyi Rubber Testing Automatic Apparatus HDT Vicat Test Machine
Mainly used in plastic, rubber, nylon, electricity hard insulating materials, long fiber reinforced materials, high strength thermosetting laminated materials of nonmetal material such as heat distortion temperature and vicat softening point temperature is determined. Easy operation, precise control, intelligent is extremely high.
Characteristic:
It adopts PC computer control, far easton dial indicators measurement digital deformation, real-time curve drawing, directly in the PC of the test data in secondary treatment, test data can be imported into the OFFICE software, edit typesetting.
Design standard: GB/T 1633,GB/T 8802,GB/T 1634,ISO 2507,ISO 75,ISO 306,ASTMD 1525,ASTMD 648 etc.
| Temperature range | Room Temperature—300℃ |
| Maximum temperature indication error | 0.1℃ |
| Temperature indication precision | ±0.5℃ |
| Maximum deformation indication error | ±0.001mm |
| Deformation measurement range | 0—10mm |
| Sample holder number | 3 sets |
| Weight of load bar and tray | 68g |
| Test span range | According to Standard (64 or 100mm) |
| Heating medium |
Methyl silicone oil or transformer oil (The conventional flash point is 260 ℃, the high temperature type needs to be provided by the customer). |
| Cooling method: |
More than 150 ℃(natural cooling) less than 150℃ (water or natural cooling) |
| Heating power | 3kw |
| Supply voltage | 220V, 50Hz |
