Product Details:
|
| Temperature Range: | 500-1000C ±2C Continus Adjustable | Thermocouple: | Diameter 0.5mm Type K |
|---|---|---|---|
| Light-off Time: | 0-999.9 S | Ironing Into Depth: | 7mm ± 0.5 Mm |
| Test Speed: | 18±3mm/s | Glow Wire: | Diameter 4mm±0.04mmNi/Cr(80/20), Standard |
| Searing Time: | 30s±0.1s | Fireouttime: | 0-999.9 S |
| Sample Pressure: | 1N ± 0.2 N | Test Background: | Black Background |
| Highlight: | IEC60695 Needle Flame Testing Machine,Liyi Needle Flame Testing Machine |
||

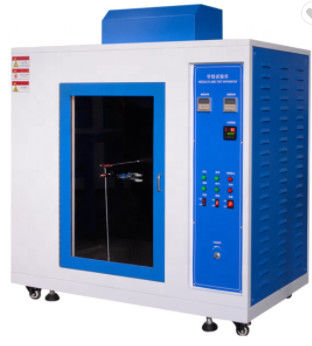

Liyi IEC60695 Needle Flame Testing Machine Tester Flammability Chamber
Needle flame tester is suitable for lighting, low voltage electrical appliances, household appliances, machine tool electrical appliances, motors, power tools, electronic instruments, electrical instrumentation, information technology equipment, electrical affairs equipment, electrical connections, accessories and other electrical and electronic equipment and components, The research, production and quality inspection departments of components also apply to insulation materials, engineering plastics or other solid combustible materials industries.
| Burner angle | vertical (when adjusting and measuring flame height) or tilting 45° (testing) |
| Combustion gas | 95% butane gas or propane gas |
| Pilot pave layer | white pine board (thickness 10mm), surface covered 12~30g/m2 layer of standard paper, 200mm±5mm away from where the flame is applied |
| Temperature range | 0--1000 °C |
| Flame temperature requirements | From 100 ± 2 °C ~ 700 °C ± 3 °C, should be completed within 23.5 ± 1.0 |
| Flame height | 12mm ± 1mm, height measuring device |
| The ignition time | 0s ~ 999.9s adjustable, generally set to 30s |
| Holding time | 0s ~ 999.9s, automatic recording, manual pause |
| Test space | ≥ 0.5m 3, background black, (0.75 m3 cubic or 1 m3 customized according to customer requirements) |
| Temperature sensor | K type insulated armored (Φ0.5mm) |
| Test Power | 220V/AC, 50Hz |
