Product Details:
|
| Warranty: | 12 Months | Cooling System: | Water-cooled Or Air-cooled,Taikang Compressor In France |
|---|---|---|---|
| Uses: | Thermal Shock Chamber | Test Standard: | QC/T17-92,EIA 364-32,SJ/T10186-91Y73,GJB |
| Temperature Conversion Time: | Less Than 10S | Keyword: | Thermal Shock Machine |
| Power: | Electronic, AC380V/50HZ Three-phase Four-wire Ac Power | Resolution: | TEMPERATURE : 0.01centigrade/ TIME : 1 MIN |
| Temperature Deviation: | Less Than 2℃ | Temperature Recovery Time: | Less Than 5mins |
| Temperature Recovvery Tim: | Less Than 5min | ||
| Highlight: | 2 Zones Thermal Shock Test Cabinet |
||

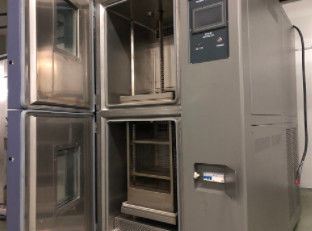

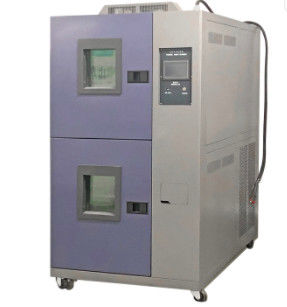

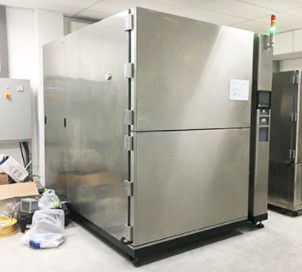

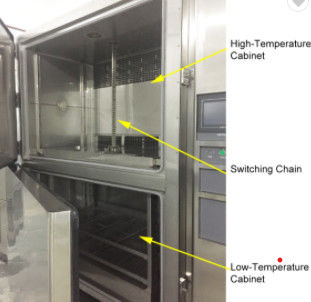

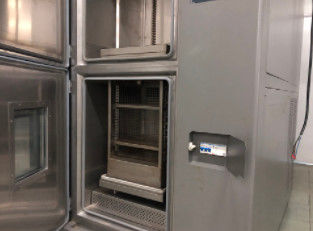

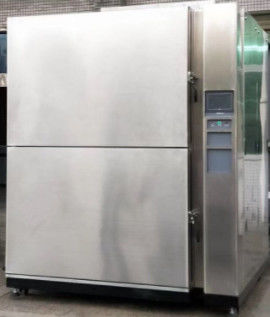

Liyi Fast Temperature Change Chamber Caso de prueba de impacto a alta y baja temperatura Thermal Shock Test Cabinet
| Inner Size(mm) | 400×350×300 | 400×500×400 | 500×600×500 | 500×750×600 |
| Temperature Range | High temperature chamber:RT~+150°C Low temperature:RT~-60°C | |||
| Temperature Deviation | Less than ±2°C | |||
| Temperature Conversion Time | Less than 10S | |||
| Temperature Recovery Time | Less than 5min | |||
| Material |
External material: SUS#304 Stainless steel plate Internal material:SUS#304 Stainless steel plate |
|||
| Coolting System |
Water-cooled or air-cooled, Tecumseh compressor in France, Environment friendly refrigerant |
|||
| Controllor | Programmable temperature controllor imported from Japan | |||
| Temperature Sensor | PT 100 *3 | |||
| Setting Range |
TEMPERATURE : -100.00+200.00°C / TIME : OH1M ~ 9999H 59M / CYCLE ~ 10000 CYCLE |
|||
| Resolution | TEMPERATURE : 0.01°C / TIME : 1 MIN | |||
| Output Mode | PID + PWM + SSR CONTROL METHOD | |||
| Simulated Load IC (KG) | 3.5kg | |||
| Standard Accessories | Cable hole, lighting equipment | |||
| Cooling System | Water-cooled/air-filled type | |||
| Power | AC380V/50HZ Three-phase four-wire ac power | |||
| Additional Features |
The outlet and return it checks for taste known control /CM BUS (RS-485) remote monitoring management system /Ln2 liquid nitrogen rapid cooling control device |
|||
| Remarks |
It can be customiazed according to customer demands. Technology index refer to product description.Delivery time within 45days. |
|||
