Product Details:
|
| Warranty: | 12 Months, 12 Months | Display: | Digital |
|---|---|---|---|
| Test Method: | Point, Edge, Face | Test Load: | 0~70KG |
| Standard: | JISZ0202-87 | Drop Height: | 300~1500mm |
| Max Weight Of Specimen: | 100kg | Test Way: | Faces, Edges, Angle All-round Decline |
| Highlight: | Liyi Package Drop Testing Equipment,Free Fall Tester Machine,Package Drop Testing Equipment |
||

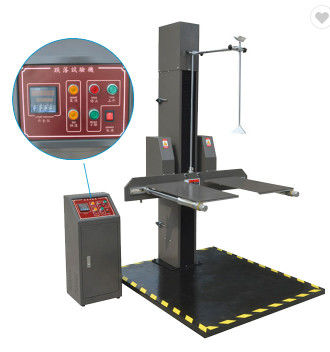

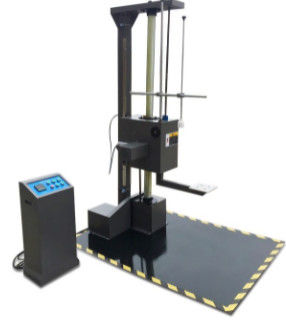

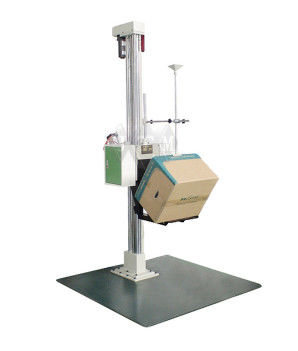

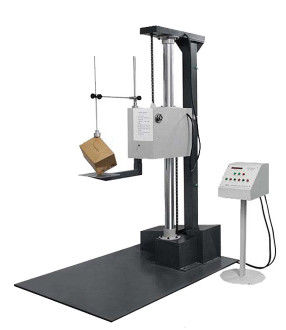

Liyi Package Free Fall Tester Machine Package Drop Testing Equipment
Liyi Free Fall Drop Tester can determine the ultimate dimension in drop testing and incline impact testing for product and package performance which uses as reference to improve the packing. Special fixtures are available to allow for corner and edge drops.
Design Standard:
GB4757.5-84 JISZ0202-87 ISO2248-1972(E)
Characteristics:

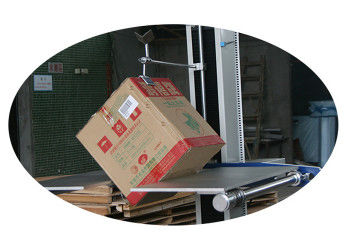

Liyi Free Fall Drop Tester advanced structure ensure that bracket and specimen separate freely and specimen drop freely through bracket rapid downward motion then rotation movement. It delivers perfect test for specimen side, edge and corner.
| Drop height | 300~1500mm adjustable |
| Outside dimension | W1200xD1700xH2400mm |
| Test load | 0~70KG |
| Maximum size specimen | W800xD600xH800mm |
| Size bracket arm | W290xD180xH8mm |
| Showing way | Digital display, adjustable |
| Test way | Faces, edges, Angle all-round decline |
| Drop bottom medium | Steel plate |
| Fall and lift way | Electric fall and rise |
| Horse power | 1HP(750W) |
| Power | AC 380V 50/60HZ |
