Product Details:
|
| Capacity: | 50KN | The Max Stretch Stroke: | 600mm |
|---|---|---|---|
| The Test Force Measuring Range: | 2% - 100% | The Test Speed: | 0.01-500 Mm/min |
| Displacement Measurement Accuracy: | > 0.01 Mm | Power Supply: | 220V 50Hz |
| Highlight: | Universal Fatigue Testing Machine,Liyi Universal Fatigue Testing Machine,Universal Fatigue Testing Machine Price |
||

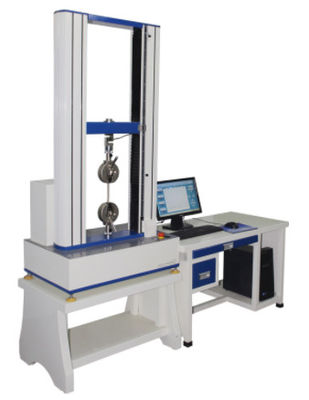

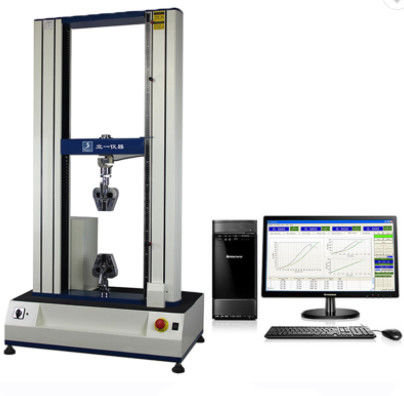

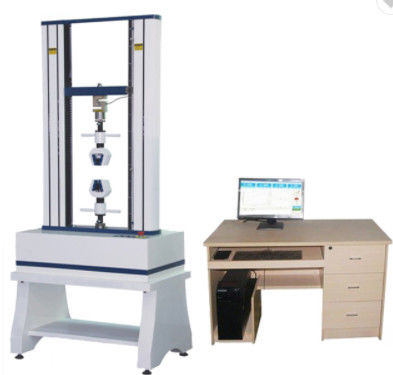

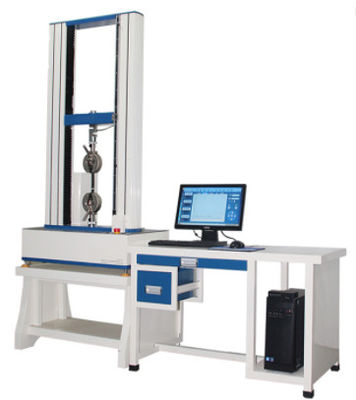

Liyi Laboratory Servo Hydraulic Universal Fatigue Testing Machine Price
Liyi fatigue testing machine is designed for quick and reliable tensile, compression, bending, shear, peel, loop tack and fatigue cycling on metals, tape, composites, alloys, rigid plastics and films, elastomers, textiles, paper, board and finished products.
Design standards: ASTM D903, GB/T2790/2791/2792, CNS11888, JIS-K6854, PSTC7
Can be customized:
| Model | LY-1066A | LY-1066B |
| Capacity | 1,2,5,10,20,50,100,200,500,1000,2000 optional(or customize) | |
| Accuracy level | 0.5 | |
| Effective pull space | 1200mm(contain grips) | |
| Effective test width | 400mm | 320mm |
| Effective test force range | 0.02/100~100% | |
| Speed accuracy | Less than ±0.5% | |
| Displacement accuracy | Less than ±0.5% | |
| Deformation test accuracy | Less than ±0.5% | |
| Sensor | Imported high accuracy sensor | |
| Test force resolution | 1/250,000 | 1/150,000 |
| Test Speed | 0.1~500mm/min | 50~500mm/min |
| Motor system | Panasonic servo motor + Panasonic sevor drive | AC motor + AC drive |
| Software controlling system | Fully computer control, can do constant stress, constant strain, constant displacement,ect. test | |
| Lifting control | Computer control or manual button control | |
| Grips | Customize according to customer requirements | |
| Optional parts | Lenovo computer | |
| Dimension | 80×50×150cm | |
| Weight: | About 145 kg | |
| Operation method | computer control | |
| Operation system | TM2102 | |
| Power | 1Ø,220V/50HZ | |
